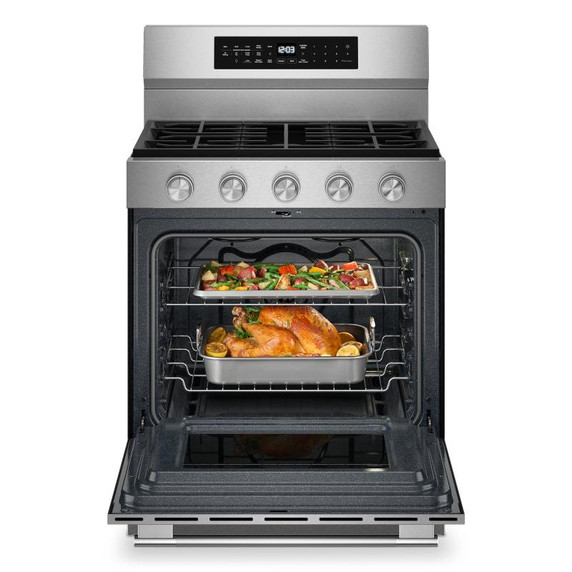

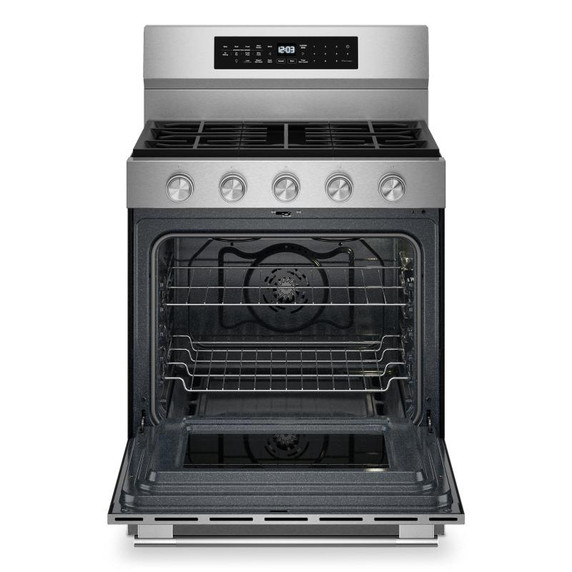

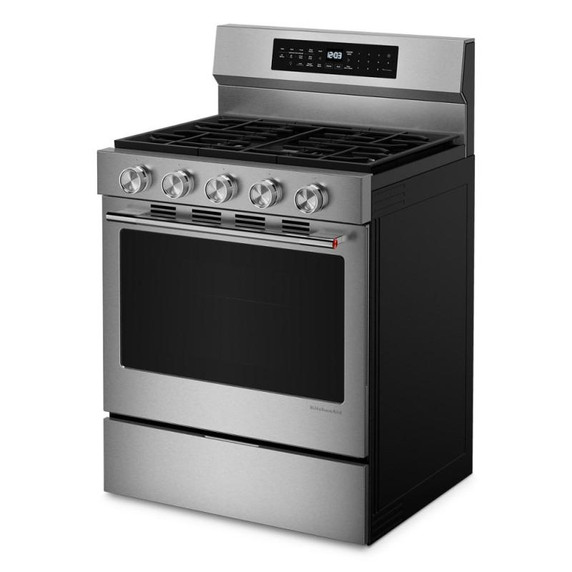

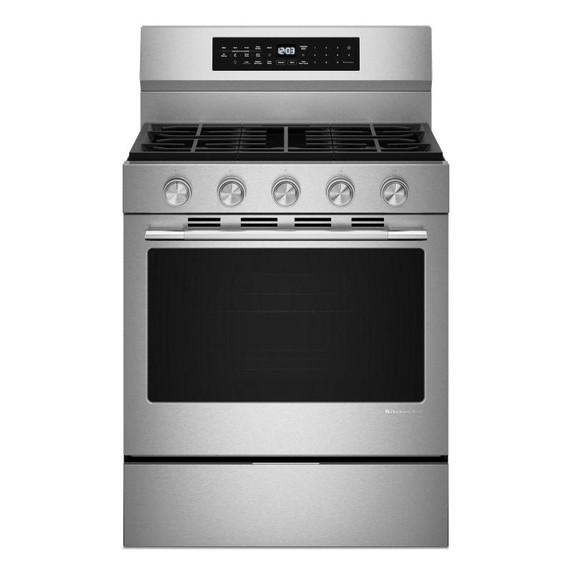

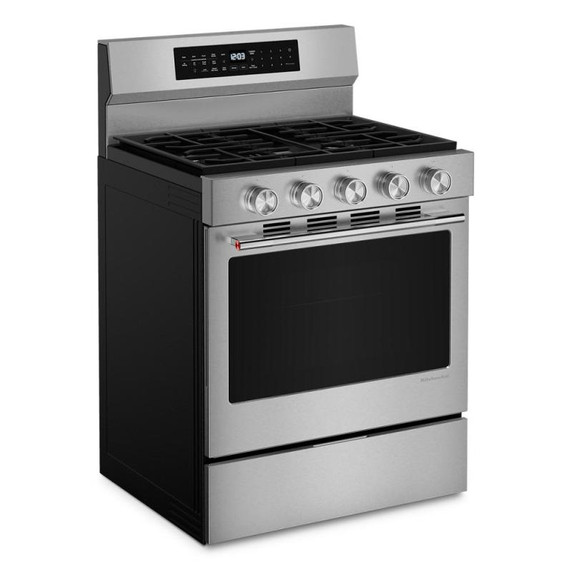

Kitchenaid® 30-Inch 5-burner Gas Slide-In Convection Range KFGS530SPS
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Watts1
Configuration and Overview
Fuel TypeGas
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS
ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Product To Product Pairs
Extended Service Plan ParentEW08IW4Y, EW08IW2Y, EW08IW1Y
Optional AccessoriesW11692811, 4396096RB
Features
Heating Element On Indicator LightYes
LP ConvertibleYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Total Gas Btus Oven S16,500
Natural Gas ConvertibleNo
GriddleNo
Total Gas Btus Cooktop63,000
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedStar K Certified
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Description
Size In30
Range TypeFreestanding

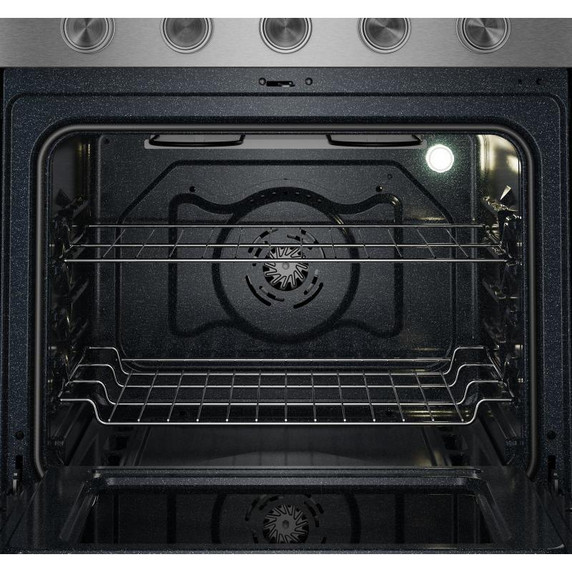

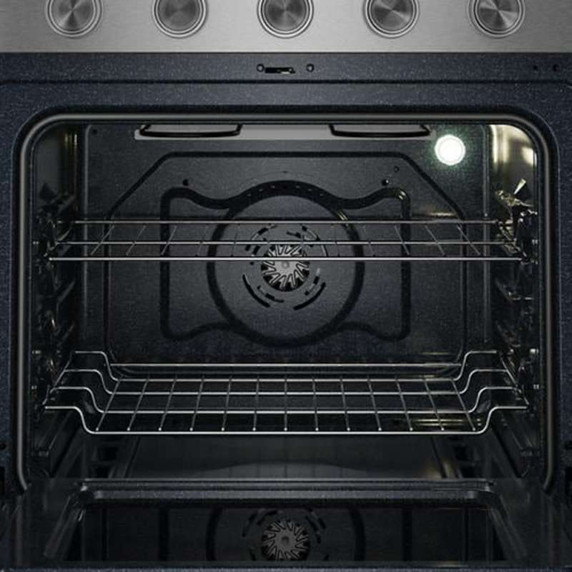

Details
Broiler Element Power1300WElectricBroil
Cooktop Surface MaterialPorcelain Coated Steel

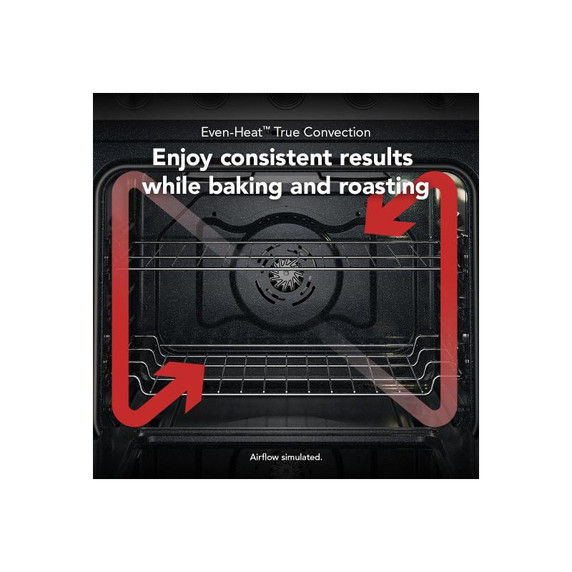

Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Number Of Oven Racks2
Oven Cleaning TypeSteam Clean
Oven Interior Depth In Inches19.0
Number Of Rack Guides5
Number Of Oven Lights1
Broiler LocationTop Center
Interior ColorBlue

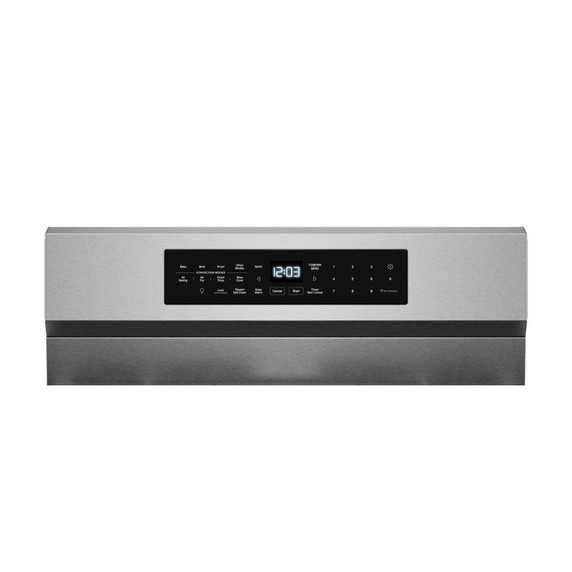

Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Bake Element Power16500BTU
Convection Element TypeTrue
Oven Rack Type2 Standard
Oven Control Knob TypeN/A
Convection FunctionsNo
Hidden Bake ElementHidden
Oven Interior Width In Inches24.2
Rack Guide TypeEmbossed

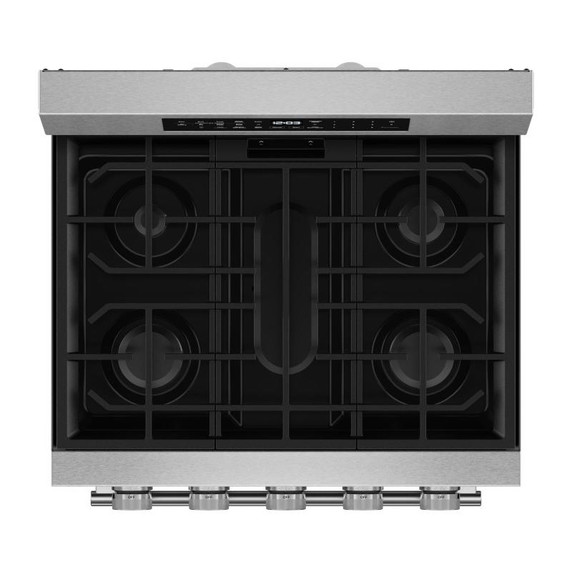

Cooktop Details
Center Rear Element Burner Power12000BTU

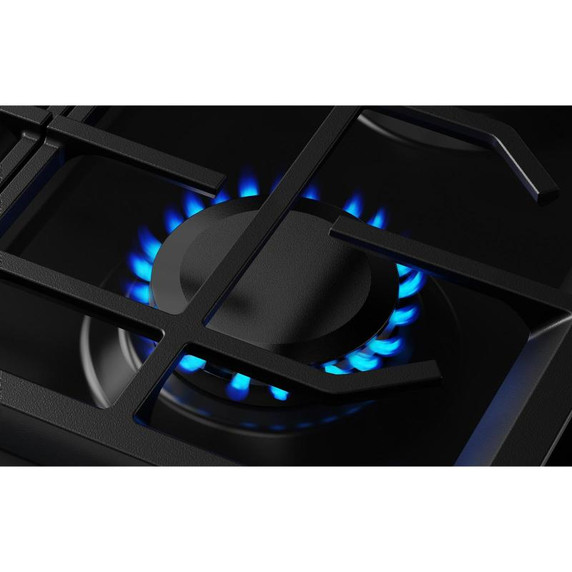

Cooktop Element StyleSealed Burners
Auto Re IgnitionYes
Cooktop Control TypeKnobs
Number Of Grates3
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner TypeSealed Burner
Cooktop Control LocationBackguard
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Ignition TypeDirect Spark Ignition
Left Rear Element Burner Power10000BTU
Right Front Element Burner Power18000BTU
Grate DetailsDishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Left Front Element Burner SizeN/A
Left Rear Element Burner SizeN/A
Right Front Element Burner SizeN/A
Right Front Element Burner TypeExtra Large
Right Rear Element Burner SizeN/A
Left Front Element Burner TypeLarge
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Gross Weight215.0 lbs.
Net Weight199 lbs.
Depth With Door Open 90 Degree46.8"

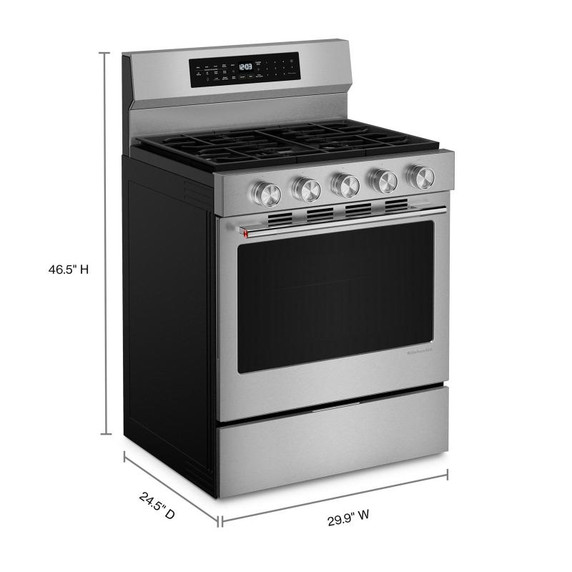

Depth24.5"
Height46.5"
Maximum Height52.0"
Minimum Height46.5"
Width29.9"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
Depth Closed Excluding Handles26.5"
Depth Closed Including Handles28.1"
