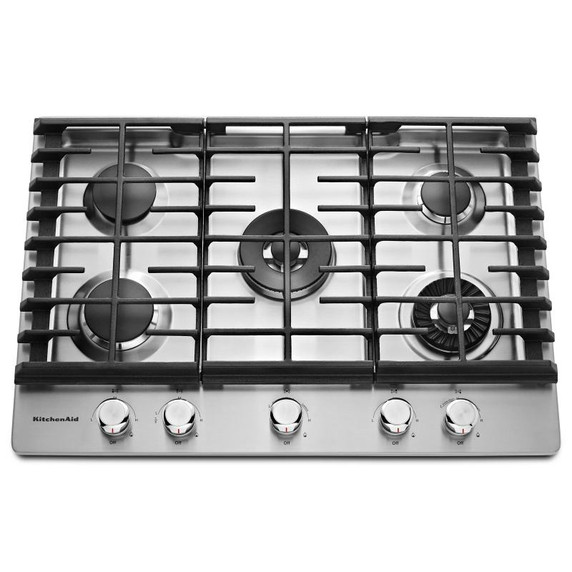

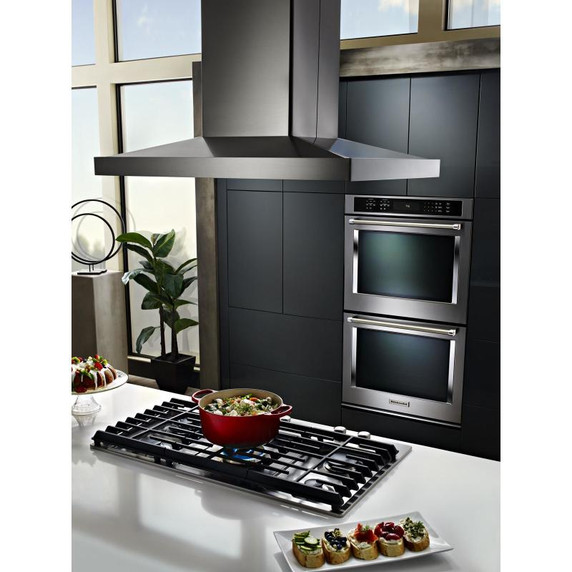

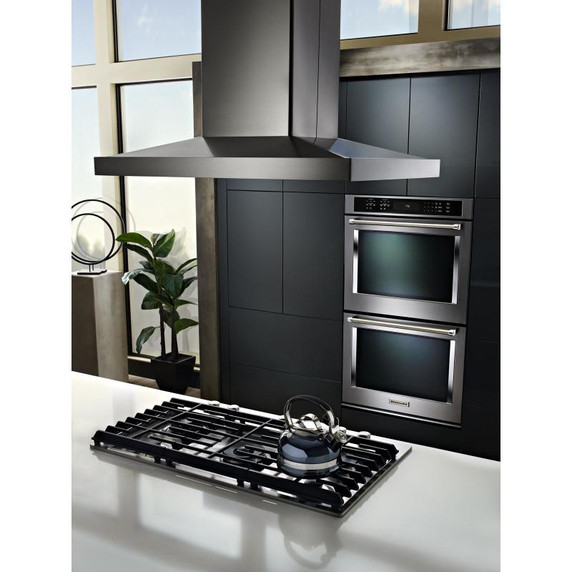

Kitchenaid® 30 5-Burner Gas Cooktop with Griddle KCGS950ESS
Whirlpool, Maytag, KitchenAid Boxing Week in July - Kitchen, June 20 - July 10, 2024. Save $150 when you purchase 2 qualifying Whirlpool®, Maytag®, or KitchenAid® kitchen appliances. Save $300 on 3 or more!

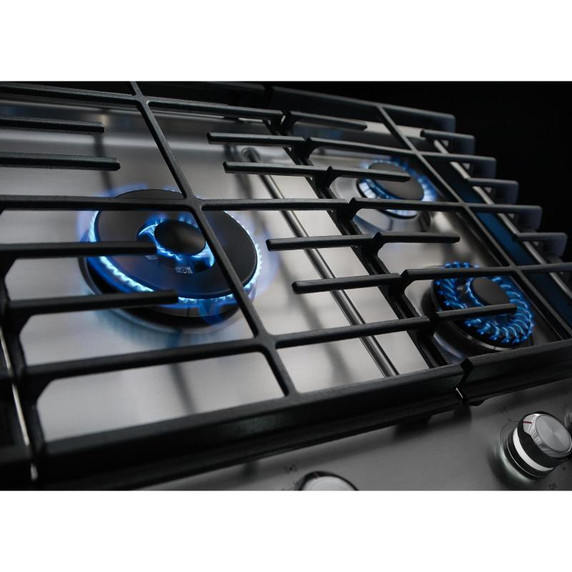

10,000 BTU Even-Heat™ Torch BurnerFeatures an exclusive design that provides a small flame for delicate simmering and a larger one that distributes high heat across the whole pan for more even cooking.
17K BTU Professional Dual Ring BurnerAllows you to go from one small flame for precise simmering to a dual flame for powerful boiling, all on the same burner.

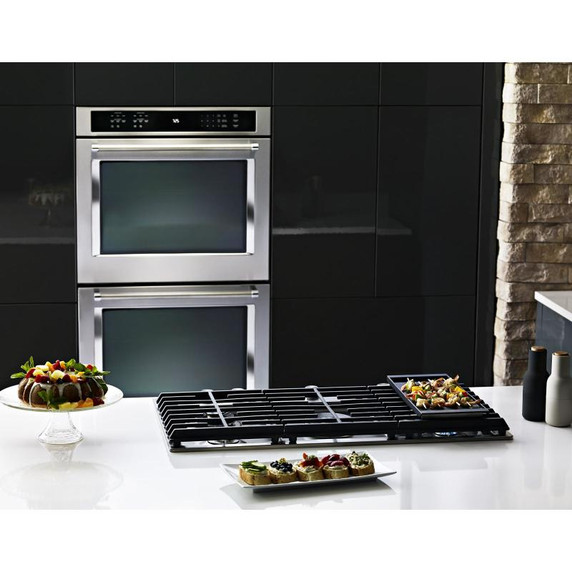

Removable Griddle IncludedProvides a one-piece flat surface that can be used on the right, left, or center of the cooktop surface, and is ideal for making a range of dishes from crepes to quesadillas.
CookShield FinishProtects the cooktop from stains that mayoccur with high temperature cooking. Thepermanent finish makes it easy to wipe cleanwithout harsh chemicals so it looks clean,bright and beautiful even longer.
Multi-Finish Back-Lit KnobsDeliver a beautiful accent with pleasant LED lights that let you know when the burner is in use.
6,000 BTU Even-Heat™ Simmer BurnerA diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
Electronic Ignition and Automatic ReignitionLights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
Full-Width Cast-Iron GratesEnhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

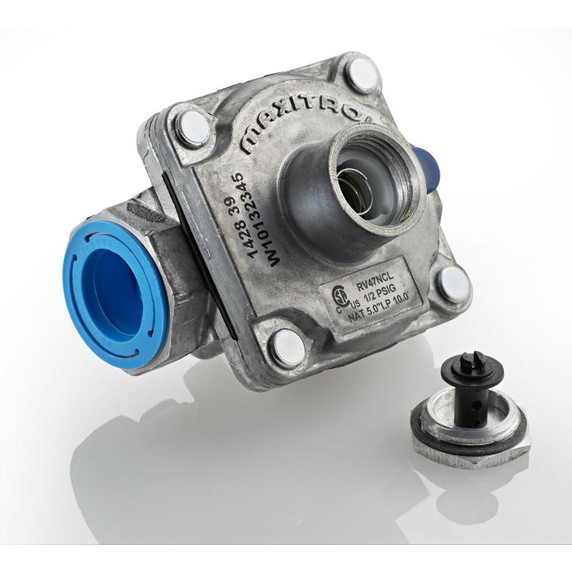

LP Conversion Kit IncludedAllows you to convert the cooktop so it can be used with LP gas.
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW08IW2Y
Product To Product PairsKVUB400GSS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
Cooktop Details
Cooktop Element StyleSealed Burners
Center Rear Element Burner Power17000BTU
Center Rear Element Burner TypeHigh Output
Left Front Element Burner Power12000BTU
Left Front Element Burner TypeSealed Burner
Left Rear Element Burner Power6000BTU
Left Rear Element Burner TypeSimmer
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Front Element Burner TypeEven-Heat™
Right Rear Element Burner Power7000BTU
Right Rear Element Burner TypeSealed Burner
Features
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Description
Size In30
Combinations With OvenKOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107; KOSC104FSS
Cooktop TypeTraditional
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Refinements
Kad CooktopEven-Heat Melt Burner; Cookshield Finish; Torch Burner; ADA Compliant

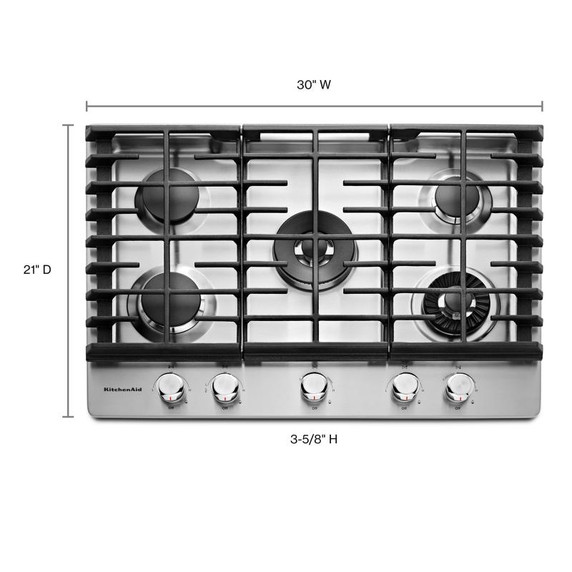

Depth21.0"
Height3.69"
Width30.0"
Cutout Depth19.81"
Cutout Height5.25"
Cutout Width28.88"
Carton Depth Inch25.0
Carton Height Inch12.06
Carton Width Inch34.81
Maximum Height4.59"
