Whirlpool® 5.0 cu. ft. Freestanding Gas Range with Adjustable Self-Cleaning WFG510S0HS
Whirlpool
Whirlpool® 5.0 cu. ft. Freestanding Gas Range with Adjustable Self-Cleaning WFG510S0HS
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza and lasagna faster with preprogrammed settings that automatically adjust cooking times for you.

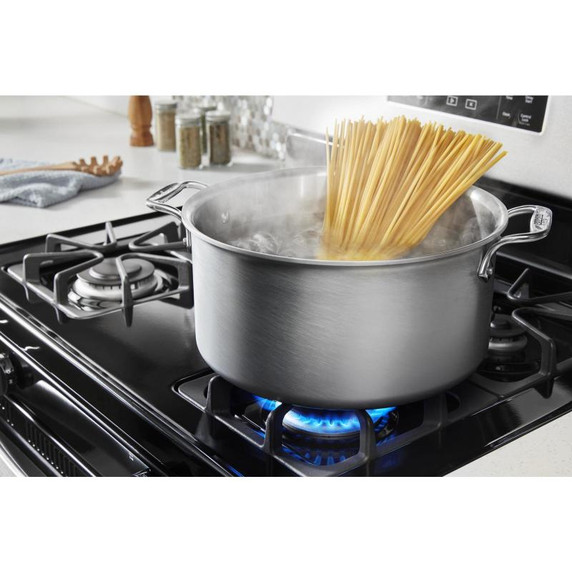

SpeedHeat™ BurnerGet dinner to the table fast with this 15,000 BTU burner that generates the high heat needed to sear and boil quickly.

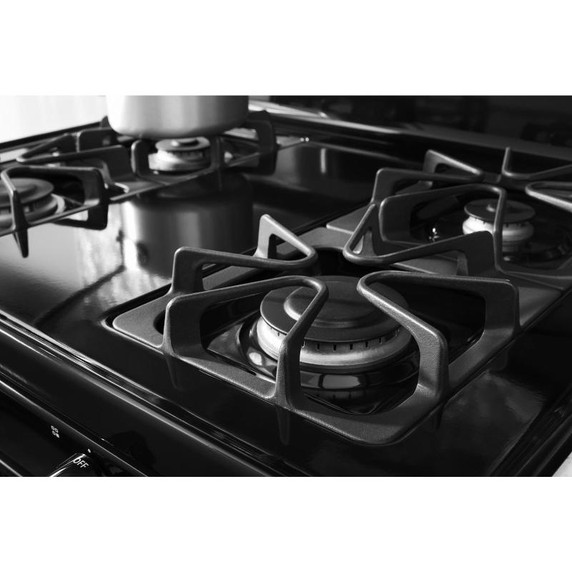

Cast-Iron GratesWash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
Temperature SensorGet evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
Closed Door BroilingMaintain the optimal cooking temperature for food while still keeping the kitchen comfortable and cool using this broiling temperature management system that helps prevent overheating.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Adjustable Self-Cleaning TechnologyClean without harsh chemicals or special cleaners by running this high-temperature setting that automatically cleans the oven according to a preprogrammed cycle.

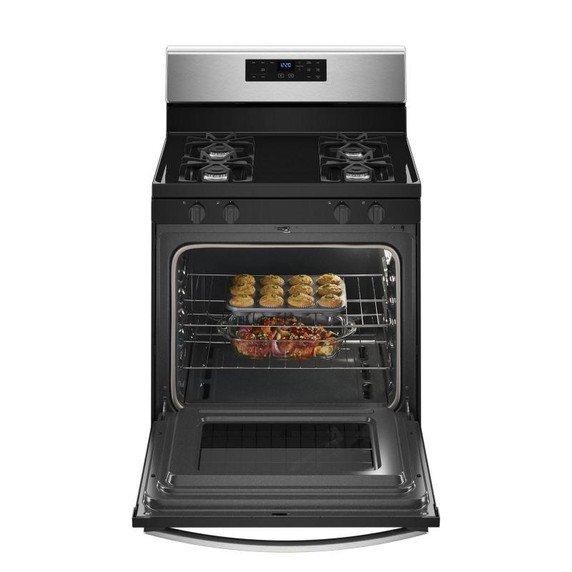

5.0 cu. ft. CapacityEasily cook large meals with 5.0 cu. ft. capacity.
Large Oven WindowKeep an eye on your meal through the large oven window.
Hidden Bake ElementGet easier oven cleaning with a hidden bake element.
Dishwasher-Safe KnobsRemove the dishwasher-safe knobs for easier cleaning.
Upswept SpillGuard™ CooktopClean up faster with a cooktop that has raised edges to help contain spills.
Sabbath ModeEnable this mode to set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off. When it's turned on, displays, tones and all other cooking and cleaning cycles are disabled.
Controls
Knob TypePlastic
Knob ColorBlack
Electrical
Volts120
Amps15
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Cast Iron Vs PorecelainCast Iron Grates
Matte Finish Vs Satin FinishSatin Finish
Extended Service Plan Parent
Product To Product Pairs
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
GriddleN/A
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Certifications
ULYes
ADA CompliantNo
CULYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In30
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Bake Element Power16500BTU
Broiler Element Power10000BTU
Oven Rack TypeStandard
Convection FunctionsNo
Cooktop Details
Cooktop Element StyleSealed Burners
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Front Element Burner Power15000BTU
Right Front Element Burner Power15000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Ignition TypeDirect Spark Ignition
Number Of Grates4
Grate DetailsCast Iron Grates; Dishwasher Safe; Individual; Satin Finish
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"

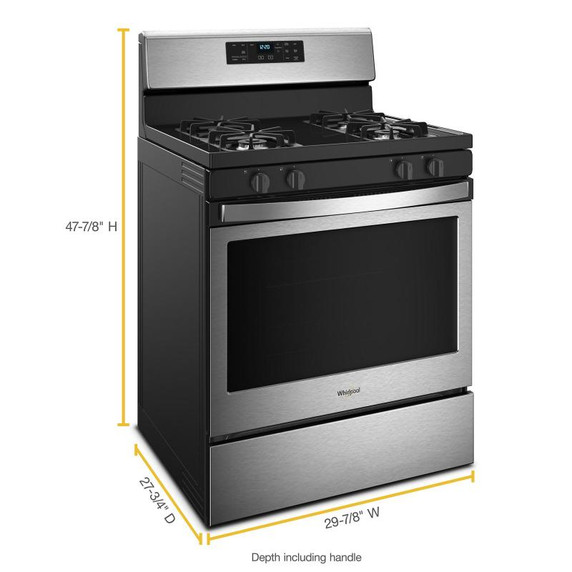

Depth27.75"
Height47.88"
Width29.88"
Depth With Door Open 90 Degree46.88"
Gross Weight176.0 lbs.
Maximum Height47.88"
Minimum Height46.88"
Net Weight161.0 lbs.
Capacity (cubic feet)5.00
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.75"
Capacity FT3 (cubic feet)5.0
